SPECIFICATIONS

Zener Diode: 0.01 - 24V

Waveform Freeze: Yes (HOLD function)

Vertical Sensitivity: 10mV/Div - 10V/Div (in 1-2-5 increments)

Vertical Displacement: Adjustable, with indication

Triode: YES

Trigger Type: Rising edge, Falling edge

Trigger Mode: Automatic,Regular,Single

Test Voltage Range: 1:1 probe: 80Vpp (±40V),10:1 probe: 800Vpp (±400V)

SCRS,Triac: Turn-on voltage <5V, gate trigger current <6mA

Real-time Sample Rate: 2.5MS/s

PWM Output: Frequency: 0 - 80KHz,Duty cycle: 0-100%,Amplitude: 5.0V,1.5kHz - 9.99MHz

Origin: Mainland China

Operating Temperature: 0 - 40 ℃

Operating Mode: Automatic / Manual

Model Number: FNIRSI DSO-TC2

Measuring Resistance Range: 0.01Ω - 50MΩ

Measuring Inductance Range: 10uH - 1000uH

Measuring Capacitance Range: 25pF - 100mF

Is Smart Device: No

Input voltage: 0.01 - 16V

Input Resistance: 1MΩ

Infrared Remote Control Decoding: NEC protocol infrared code

Horizontal Time Base Range: 10μs/Div - 500s/Div (in 1-2-5 increments)

FET: JFET,IGBT,MOSFET

Display Type: Digital display

Diode: Forward voltage drop <5V

Dimensions: 10cm*8cm*3cm

DS18B20: YES

DIY Supplies: ELECTRICAL

DHT1: YES

DC Voltage: 10:1 probe: 800Vpp (±400V)

DC Current: NO

Coupling: AC/DC

Certification: CE

Brand Name: FNIRSI

Battery: 0.1 - 4.5V

Analog Bandwidth: 0 - 200kHz

AC Voltage: 10:1 probe: 800Vpp (±400V)

AC Current: NO

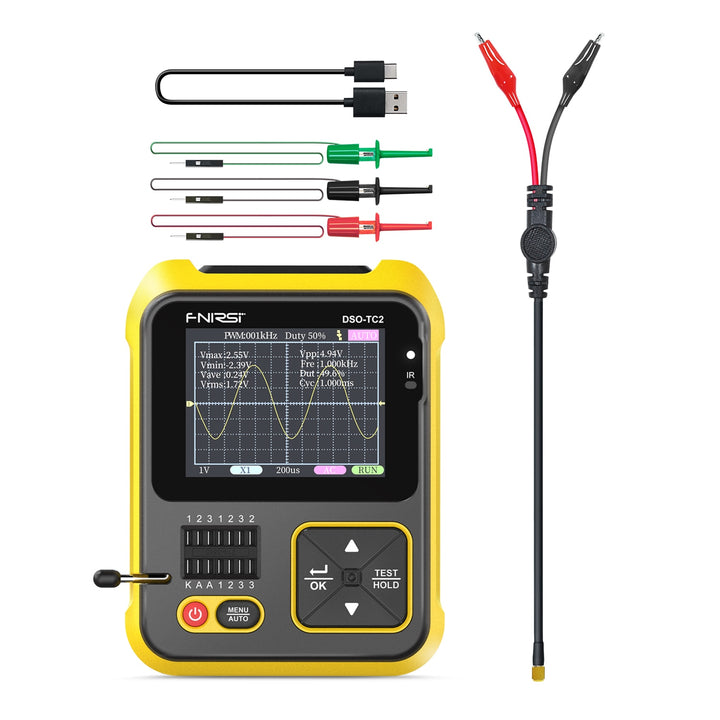

2-in-1 Multi-function Portable Digital Oscilloscope Transistor Tester Multimeter Diode Voltage LCR Detect
